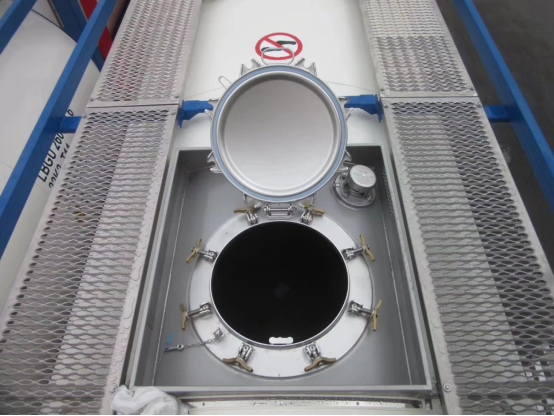

ISO tank containers are special containers manufactured for transporting liquid goods such as food, medicine, and chemicals. Its structure is to fix a liquid tank in a metal frame. It consists of two parts, the tank body and the box body frame. When loading, the goods enter through the loading hole on the top of the tank, and when unloading, they flow out through the discharge hole or suck out from the top loading hole. The tank body is round, made of high-quality Q235 carbon steel/345 manganese steel/304 stainless steel/316 stainless steel, high-strength reinforced hoop, safe and efficient. The frame is made of rectangular structural steel, which is light in weight and strong in strength, and is suitable for the transfer and transportation of various liquid goods by sea, road and railway.

Compared with the railway tank car and drum transportation, the iso tank container has the following advantages:

1.It can be used not only as a means of transportation, but also as a storage container at the production and use sites;

2.Door-to-door transportation can be realized, making transportation safer and more reliable;

3.It can realize road, railway, inland river and ocean combined transportation, greatly shortening the loading and unloading time of the station wharf. Boxes can be stacked on 6 to 9 floors, occupying a small space;

4.Since the iso tank container can realize the separation of the box and the vehicle, the enterprise that owns the tank container does not need to have its own vehicle or self-provided vehicle at the same time to realize the multi-purpose of one vehicle;

5.Save packaging cost for barreled products.

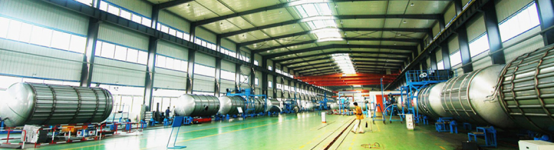

The series of tank container tanks produced by our company are manufactured with advanced technology and strict production process. Various performance indicators are in line with relevant requirements. The container tanks produced have the advantages of reasonable structure, reliable performance, beautiful appearance and easy operation.

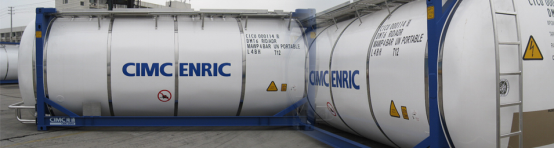

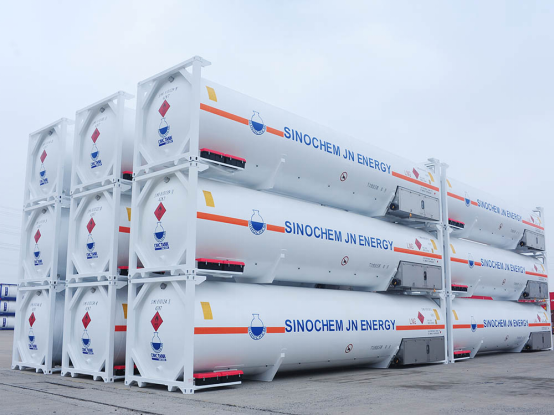

ISO Tank container

A standard tank is a stainless steel pressure vessel mounted within a fastened outer frame. The tank inner tank is mostly made of 316 stainless steel. Most tanks have steam or electric heating devices, inert gas protection devices, decompression devices and other optional equipment required for fluid transportation and handling. There is a corner load-bearing frame for protection and hoisting around the tank. The external frame dimensions of the tank container are exactly equivalent to the dimensions of a 20' container (length: 20 feet, width: 8 feet, height: 8 feet, 6 inches). Can be used for road, rail and water transportation. It can load fluid cargo up to 14,300 to 31,000 liters (or even larger).

In addition to all the advantages of containerized transportation, compared with the transportation method of "packing several drums into one dry cargo standard container", it has many advantages such as economical, practical, fast, safe, environmentally friendly, and beautiful.

CIMC Equilink provides various types of new and used tank containers, 40 feet container price and 20 feet container price are very affordable. If you are looking for shipping containers for sale, please visit us by email（info.equilink@cimc.com）or submit a quick quote.
