In the past few years, ISO tank containers have become the preferred solution for multimodal transportation of food grade products, powders, liquids and bulk chemicals. According to the data of the ITCO, as of January 2022, the number of global ISO tank container fleets has reached 736935, an increase of 7.3% year on year.

ISO tank container is a cylindrical container used for storing and transporting harmful and harmless goods. The tank container is made of stainless steel, with insulating layer and aluminum or polyurethane protective layer. It is the safest container for transporting sensitive goods.

ISO tank container is mainly composed of liquid tank and frame. The liquid tank is elliptical or nearly spherical, with a double-layer structure. The inner wall is made of stainless steel, or it is made of other rigid materials, but it needs to be coated with a layer of epoxy resin to prevent the corrosion of liquid goods. The outer wall is made of thermal insulation materials. Generally, the tank top has a round loading port, and the tank bottom has a unloading valve. There is high-pressure liquid tank, low-pressure liquid tank, insulating liquid tank, liquid tank with heating device, etc.

There are corner load-bearing frames around the liquid tank for protection and hoisting. The frame is made of high-strength steel, and the liquid tank is placed in the middle of the frame. The external frame size of the tank container is completely equivalent to the size of the international standard 20foot container. It can be used for highway, railway and water transportation. Up to 14,300 to 31,000 liters (or more) of fluid cargo can be loaded.

CIMC Equilink is committed to providing all kinds of Dry Container Spare Parts and Reefer Spare Parts, as well as all kinds of ISO Tank Parts, such as Walkway, Manlid seal white sweet rubber (Ring type), GRP for ISO Tank Wall Cladding, GRP Head Cladding Curved Type, Tank Ladder, etc. The ISO Tank Container Parts that we will introduce to you today is Walkway, and it is a product that we have supplied quite a lot recently, and the customer feedback is very good.

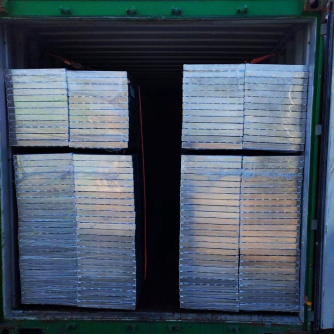

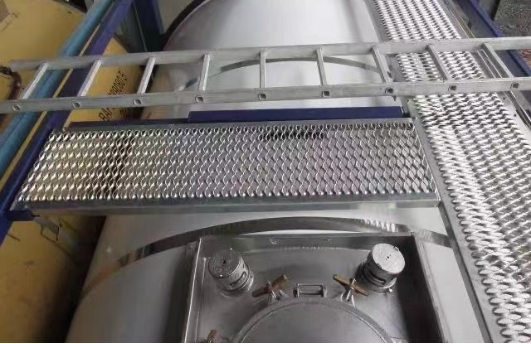

ISO Tank Walkway, also known as aluminum walkway, anti-skid aluminum alloy walkway plate, and anti-skid aluminum walkway for tank cars. The size can be customized according to customer requirements. At present, the size of the Walkway we often supply is 3.0X475X50X5800mm, and the hole type is mainly crocodile mouth type with protruding holes. The Walkway provided by CIMC Equilink meets the requirements of international container standards, and has the following characteristics:

1. High strength weight ratio, high bearing capacity and light weight.
2. Anti slip, diamond opening and serrated surface, great anti slip performance.
3. The opening design allows fluid and debris to drain.
4. The installation is simple and fast, with less maintenance after installation.

5. Economical cost and long service life.

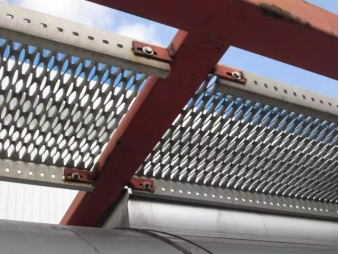

Crocodile mouth type anti-skid Walkway, named after its prominent pattern like an open mouth crocodile, is a popular anti-skid Walkway in the market. This hole type has the following advantages.
1. High anti-skid performance. The zigzag hole pattern makes the anti-skid effect better.
2. The physical structure design is reasonable. Its shape is hollow in the middle and the pattern is prominent. It increases the friction between the product and the contact object.
3. It is not easy to age and has a long service life.

4. It is conducive to discharge and does not accumulate dirt. The unique hole design can quickly filter liquid, mud, rain and snow without affecting the anti-skid effect.

Of course, in addition to the ISO Tank Container Walkway, all other container parts provided by CIMC Equilink meet the requirements of ISO standard. We can provide convenience for customers to order all kinds of container parts and truly realize “one-stop” supply and service platform.
