Vehicle Parts
Popularization of knowledge of semi-trailer parts rims and landing gears maintenance
Jul 24,2022

Trailer rims, also called wheels, are an important part of semi-trailers. "Wheels" and "tires" are two completely different parts. The so-called "tire" is the rubber part of the "wheel" of the car, which itself is a soft body, so the cylindrical part whose inner contour supports the tire and whose center is mounted on the shaft is called the wheel hub. Now the editor will popularize the knowledge for the rims:

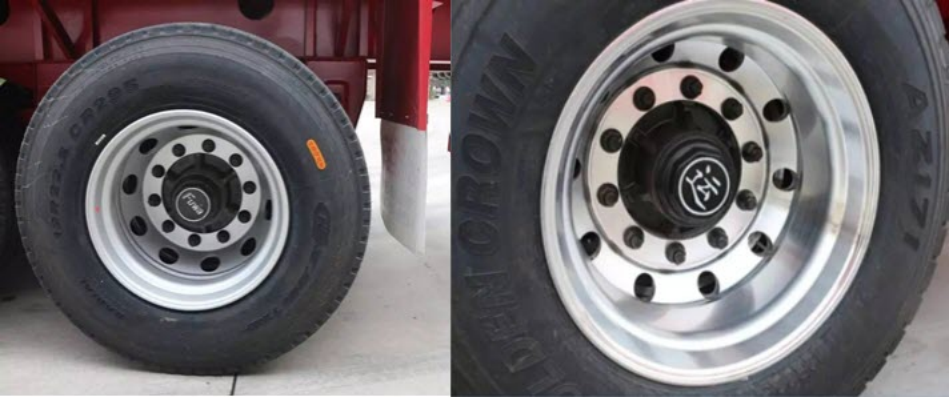

trailer rims


The maintenance method of the trailer rim:


1. When the temperature of the trailer rims is high, it should be allowed to cool naturally before cleaning, and must not be cleaned with cold water. Otherwise, the aluminum alloy trailer rims will be damaged, and even the brake disc will be deformed and the braking effect will be affected. In addition, cleaning the trailer rim with detergent at high temperature will cause a chemical reaction on the surface of the trailer rim, tarnish and affect the appearance.


2. When the trailer rim is stained with hard-to-remove asphalt, if the general cleaning agent does not help, try to remove it with a brush, but do not use a hard brush, especially an iron brush, so as not to damage the surface of the trailer rim.


3. If the place where the vehicle is located is wet, the trailer rim should be cleaned frequently to avoid the corrosion of the aluminum surface by the salt.


4. After cleaning if necessary, the trailer rim can be waxed and maintained to keep its luster forever.


Trailer landing gears, the main components of trailer landing gears are a two-speed gearbox, a support sleeve, a support rod, a transmission screw (a crank handle) and a support disc. Its structure is simple, but it can achieve important functions. Only through a gear box and a crank handle, It can control the left and right trailer landing gears to lift and lower at the same time, and it can be divided into two gears: high and low. The use of trailer legs requires a relatively flat road surface, which is easy to use and labor-saving in operation.

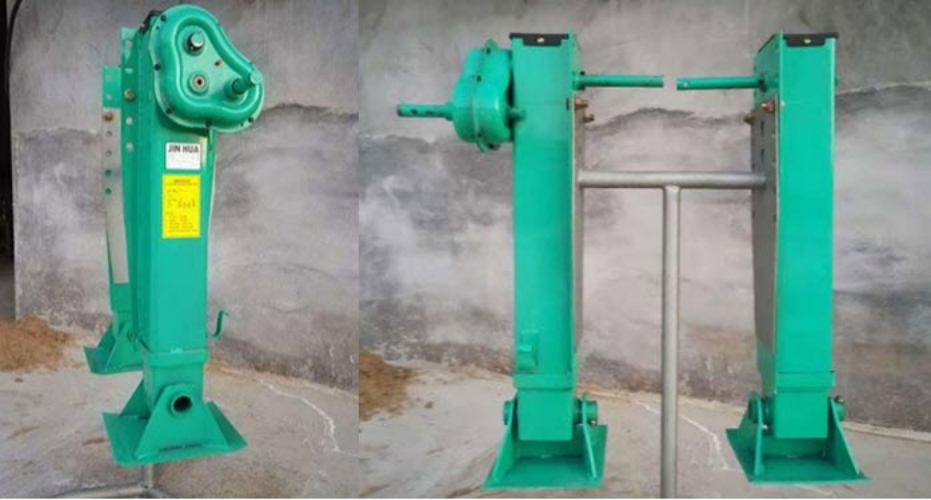

trailer landing gears


The maintenance method of the trailer landing gear:
1. After the landing gears of the trailer are used, all parts should be scrubbed and cleaned, and the trailer landing gears should be lowered to the lowest position when not in use to prevent the surface of the piston rod from rusting;


2.If there is an abnormal sound when the trailer landing gear is working, stop the operation immediately to avoid serious damage to the trailer landing gear; check whether the electrical equipment is normal before use, and add lubricating oil to all oil holes before each use;


3.In order to ensure that the trailer landing gears of the trailer are in good working condition, it is necessary to check whether the control button is effective, whether the power cord and socket are in good condition, whether the oil pipeline is in good condition, the stability of the guardrail, the tightness of the bolts at each connection point, and the appearance quality is intact;


4.The trailer landing gears should work strictly according to their specified carrying capacity. Overloading work may cause damage to personnel and goods. Working on a lifting platform without safety guardrails will cause personnel to fall and cause casualties.


CIMC Intermodal Equilink Co., Ltd provides a full range of trailer parts such as trailer rims, trailer landing gear, trailer brake drum, trailer axle etc. If you have any inquiries about trailer parts, please email us(info.equilink@cimc.com), and you can also log in to our company website for more information.
