Looking for high-quality container parts including hinge blade, container corner casting, twist lock, and container gasket? The hinge blade is a small but indispensable component in container systems—though compact in size, it plays a pivotal role in the safe operation of container doors and the overall security of cargo transport. Below is a detailed introduction to our container hinge blades, including their applications, specifications, and core value.

What Is a Container Hinge Blade & Where Is It Used?

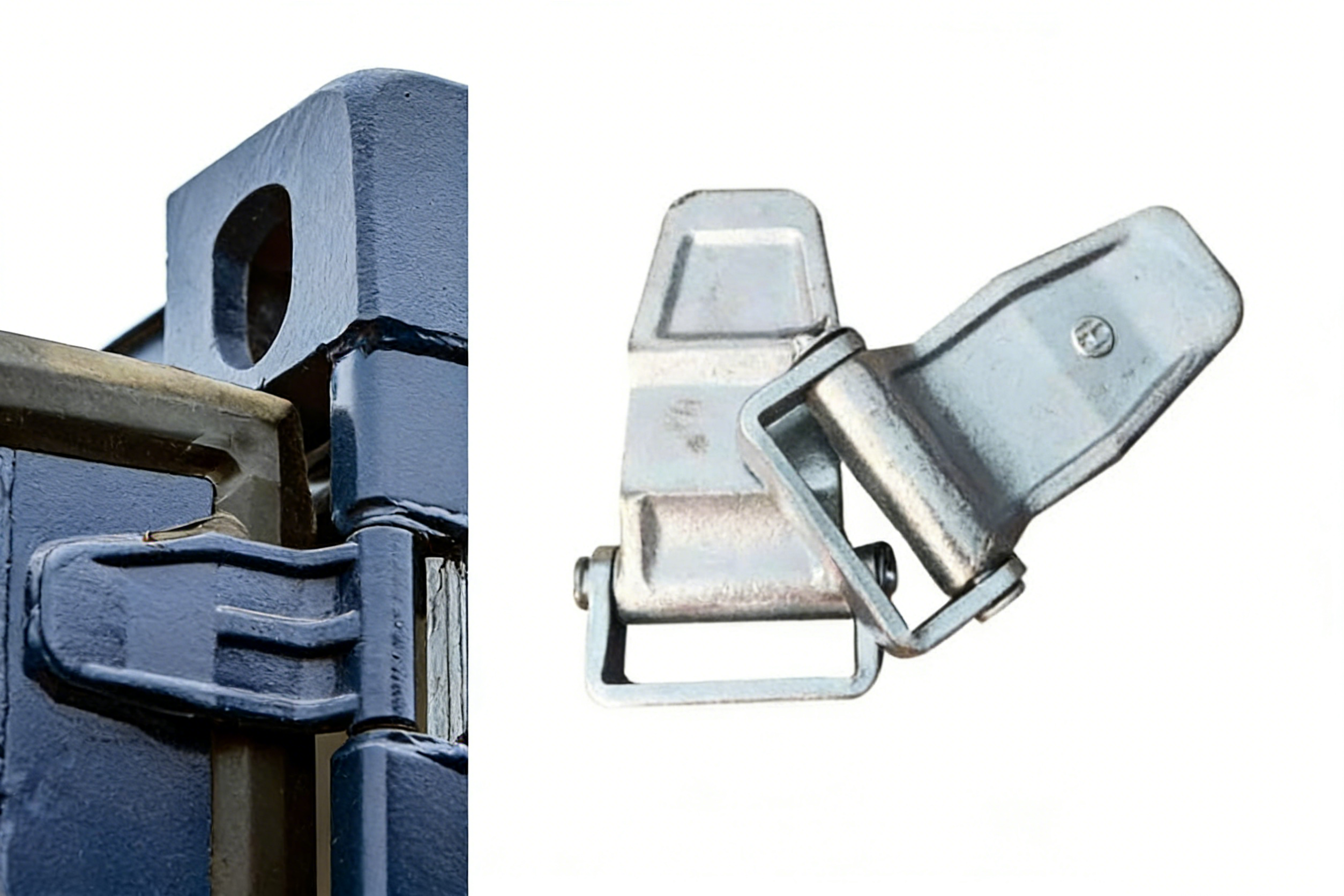

The container hinge blade is a specialized connecting and locking component for container doors, serving as the core moving part that enables smooth door opening, closing, and stable locking. Its application scope is extensive, covering almost all types of container and heavy-duty door systems:

• Container types: Dry cargo containers, reefer containers, office containers, residential containers, etc.

• Other heavy-duty doors: Van rear doors, environmental protection equipment doors, two-cabin doors, power generation equipment doors, and all kinds of heavy equipment access doors.

No matter the container or equipment type, the hinge blade is the key to ensuring the door’s structural stability and long-term usable performance.

Core Function & Structural Specifications

The Irreplaceable Protective Role

Though small, the hinge blade’s core function is to connect the container door panel with the rear corner post and bear the weight and external force of the door during transport. It ensures the container door remains tightly closed and locked during long-haul road, sea, or rail transport, preventing door loosening or deformation caused by vibration, wind, or cargo impact—thus protecting the safety of internal cargo and the normal operation of the container.

Detailed Product Specifications

CIMC Equilink offers a full range of hinge blade models (CIMC-D24-01/02/03/04) with standardized structural design and precise dimensions, adapting to mainstream container door systems worldwide:

• Main material: SS400/Q235B (high hardness, strong load-bearing capacity, and excellent durability).

• Standard single set composition: 1 hinge blade plate + 1 pin + 2 small lifting lugs (alternative configuration: 1 hinge blade plate + 1 U-shaped seat + 1 pin; note: U-shaped seat configuration has a higher cost than lifting lugs).

• Key dimensions: Blade plate (79×140×38mm L×W×H), small lifting lug (34×51×8mm L×W×H).

• Standard configuration per container: 8 sets of hinge blades (4 sets for each side of the double container doors).

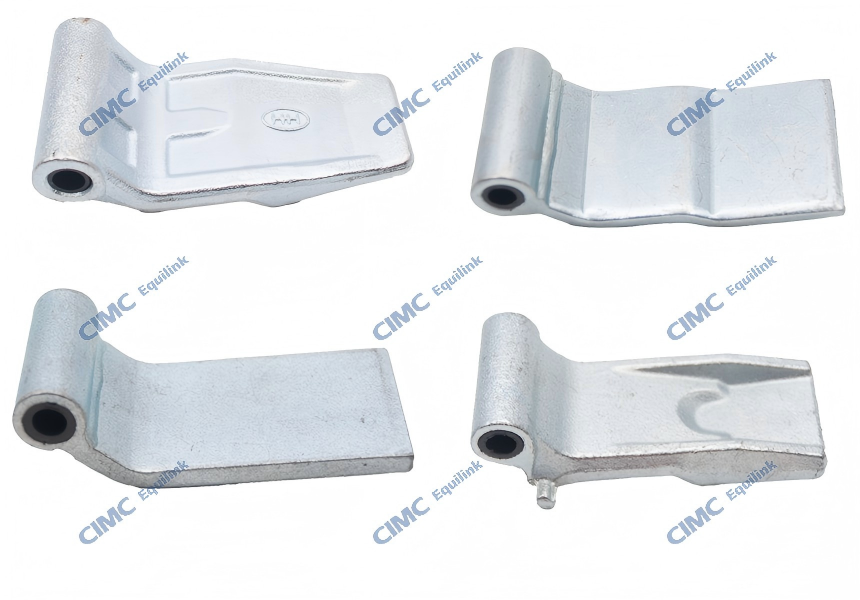

• Model variants: Forging Type, Welding Type, Maersk Type (customizable to meet customer and brand-specific container requirements).

• Single piece weight: 1.450/1.010/0.990/1.000 KGS (matching different load-bearing needs).

Why Choose CIMC Equilink Hinge Blades?

With over 20 years of focus on container parts R&D and production, CIMC Equilink adheres to strict quality control from raw material procurement to product delivery, making our hinge blades stand out in the market with superior performance:

1. Multi-environment adaptability: Weather-resistant, corrosion-resistant, and able to withstand harsh transport conditions such as marine salt spray, high and low temperatures, and heavy vibration.

2. High structural reliability: Made of high-quality SS400/Q235B steel, with high hardness and strong load-bearing capacity, no easy deformation or breakage during long-term use.

3. Certified quality: All products comply with the ISO9001 quality management system and have obtained the American Bureau of Shipping (ABS) certification; strict multi-stage quality inspection ensures a pass rate far higher than industry standards.

4. Perfect matching: Standardized design is fully compatible with mainstream container models worldwide, with no need for secondary modification during installation.

Our Full Range of Container Parts & Logistics Solutions

As a one-stop supplier of container parts backed by CIMC Group’s strong resources, we offer not only premium hinge blades but also a complete lineup of container parts and lashing equipment to meet all your container maintenance and production needs:

• Core structural parts: Container corner casting, container corner post, container cross member, container floor, container plates (top/side/end), door end parts, etc.

• Functional parts: Container locking device, twist lock, container gasket, safety lock, rubber strips, ventilators, footrests, floor nails, etc.

• Lashing equipment: Intermediate locks, bridge locks, trailer twist locks, dovetail bottom locks, single/double cones, D-rings, binding tapes, etc.

• Vehicle lock parts: 6-point locks, vehicle hinge blades, air hooks/door dampers, etc.

For over 20 years, we have established long-term and stable cooperative relationships with more than 1,000 global partners, earning a high reputation in the industry for reliable quality and professional service.

Get Your Container Hinge Blade & Parts Quote Today

Whether you need standard container hinge blades (CIMC-D24-01/02/03/04) or customized container parts solutions, CIMC Equilink is your trusted partner.

Contact us to share your needs and questions:

• Email: info.equilink@cimc.com

• Submit a quick quote for personalized product recommendations and pricing

CIMC Equilink – Focus on every tiny detail of container parts, guard the safe operation of your containers!
