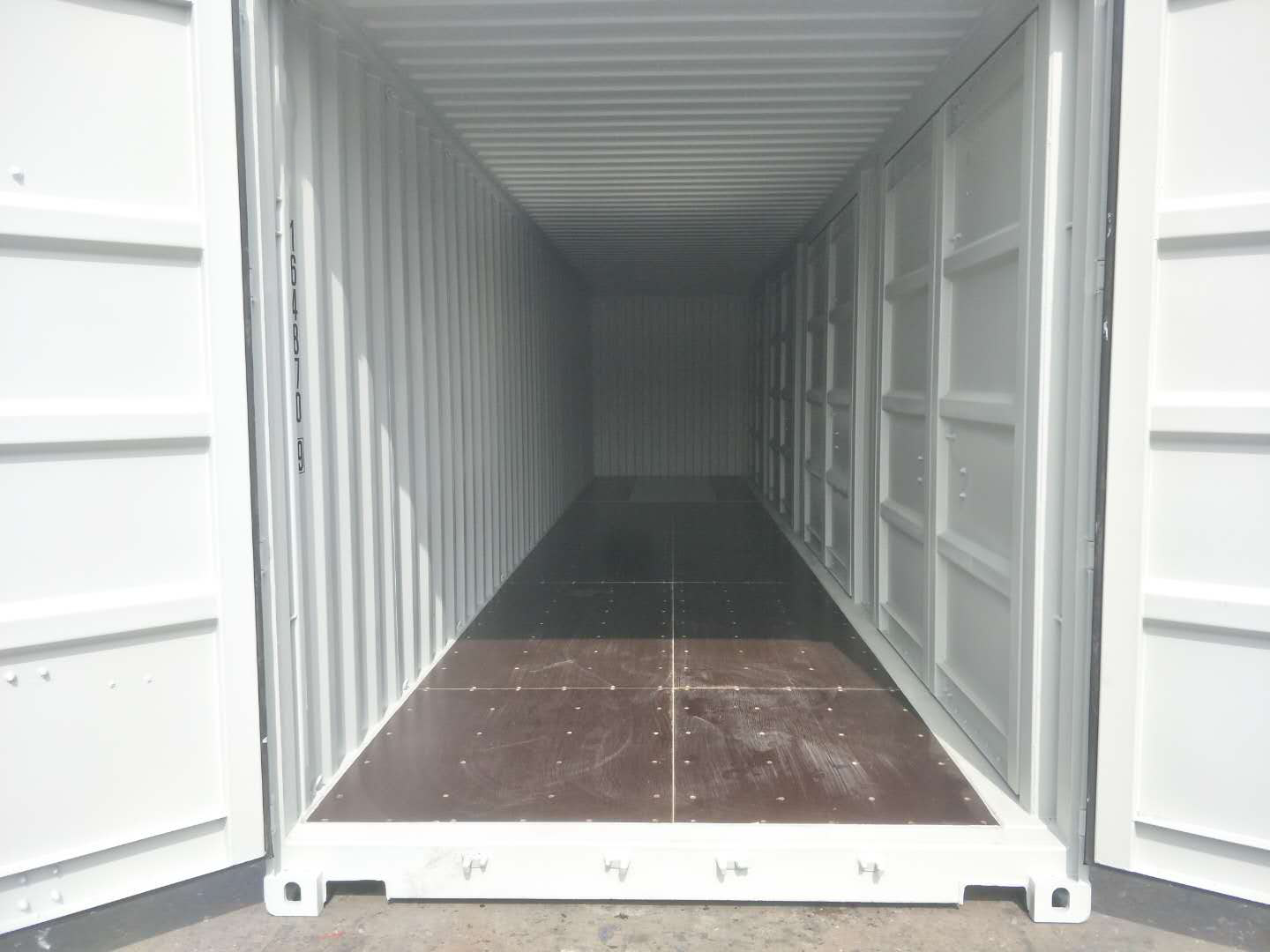

As a multi-functional representative of high cube containers, the 40ft High Cube Container with 4 Side Doors is designed to fully balance the needs of large volume and flexible loading and unloading. From the perspective of foundation size, the container has an outer length of 12192mm (about 40 feet), a width of 2438mm and a height of 2896mm. The interior maintains a net height of 2651mm and a net width of 2290mm, providing ample vertical and transverse space for cargo loading. The volume of 73 cubic meters (approximately 2578 cubic feet) is much higher than ordinary standard containers, and is especially suitable for loading large equipment, furniture or batch light industrial products, meeting the transportation needs of high stacking or long-sized cargoes.

In terms of load performance, the 40ft High Cube Container with 4 Side Doors is also designed with rigorous design. Its maximum total weight (MAX. GROSS WEIGHT) is 30480KG (67200LBS) and its own weight (TARE WEIGHT) is about 4460KG, which means that the maximum cargo weight can be carried up to 26020KG (57370LBS), which is enough to cope with long-distance transportation of all kinds of heavy goods. More importantly, the Floor TEST LOAD is up to 7260KG (16000LBS), a parameter that ensures that the container base plate can maintain the structural stability even when heavy objects are concentrated, avoid deformation or damage, and provide a solid guarantee for cargo safety.

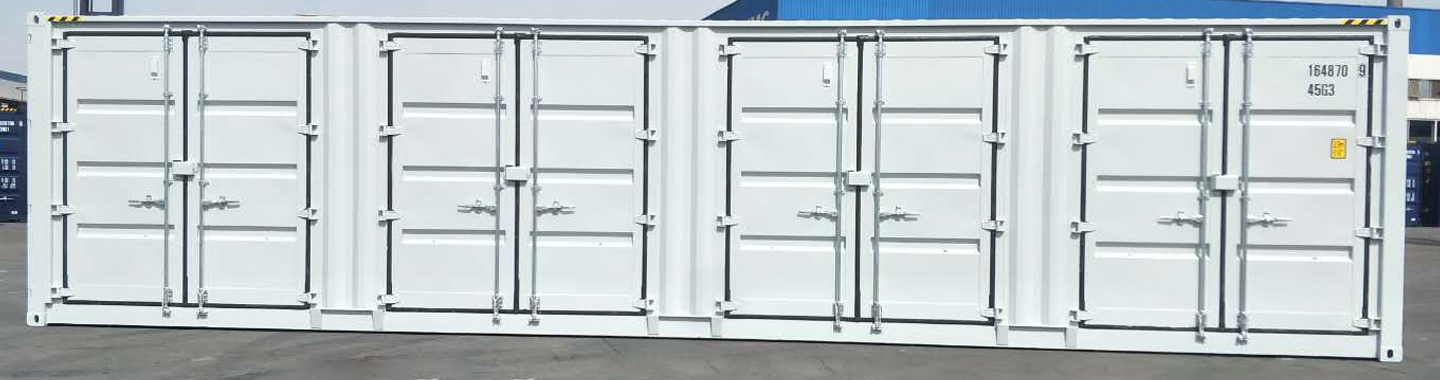

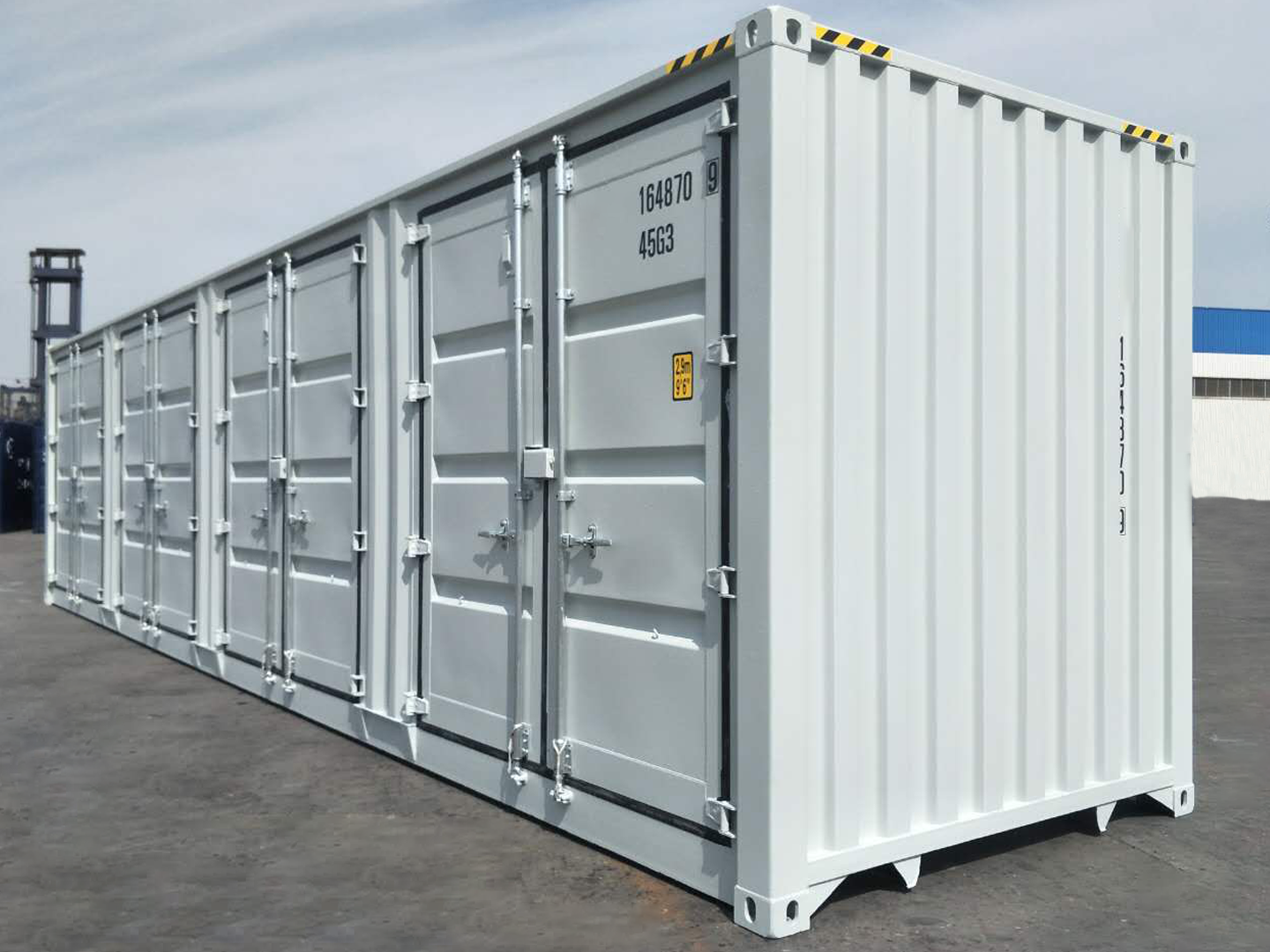

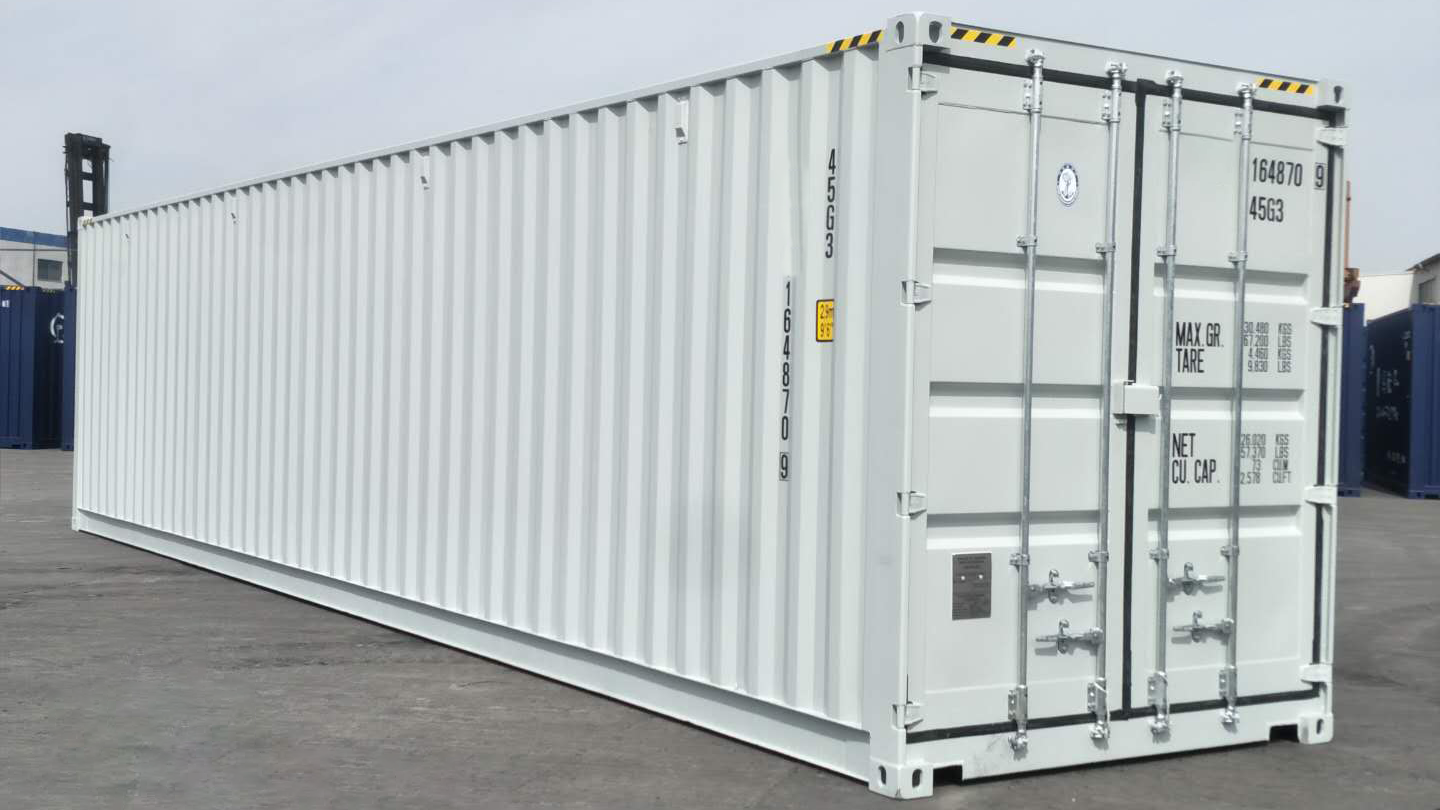

The 4-side door design is one of the core competencies of the 40ft High Cube Container with 4 Side Doors. Its side door opening height is 2495mm, width is 2340mm, rear door opening height is 2538mm, width is 2340mm. This multi-directional door opening layout completely breaks the limitation that traditional containers rely solely on rear door loading and unloading. Whether it is to quickly store and withdraw scattered goods from the side or to load them through the back door, it can greatly improve loading and unloading efficiency, especially suitable for scenarios such as logistics hubs and warehousing centers where goods need to be frequently turned over. In addition, the dimensional accuracy of the side door and the rear door is controlled within ±5mm, ensuring the sealing and safety of the door body closure and effectively resisting wind and rain during transportation.

From the perspective of industry adaptability, the 40ft High Cube Container with 4 Side Doors is designed to cover almost multiple transportation needs. For manufacturing, it can easily accommodate large mechanical parts or batch raw materials; for retail, flexible side door designs facilitate sorting of goods by order; for cross-border logistics, a large volume of 73 cubic meters can reduce the transportation cost per unit of goods. CIMC Equilink-40ft High Cube Container with 4 Side Doors, a subsidiary of CIMC Equilink, strictly follows the above parameters and standards, ensuring that every detail meets practical needs through precision manufacturing, becoming a reliable choice for multi-scenario transportation.
