A very small but important part in container parts -- do you know the hinge blade?
Jul 02,2022

The scope of application of the hinge blade is: the locking of the container door. The suitable types of containers include dry cargo containers, refrigerated containers, container office and residential containers, etc., as well as various van rear doors, environmental protection equipment doors, two-cabin doors, power generation equipment doors and heavier equipment doors can use hinge blades.


The hinge blade in the shipping container is a very small device compared to the huge container of the container. It is such a device, but it plays a pivotal role in container transportation. Let's take a closer look at the details of the hinge blade.


The role of container hinge blades is mainly to play a protective role. Let's introduce the parameters of the hinge blade products:

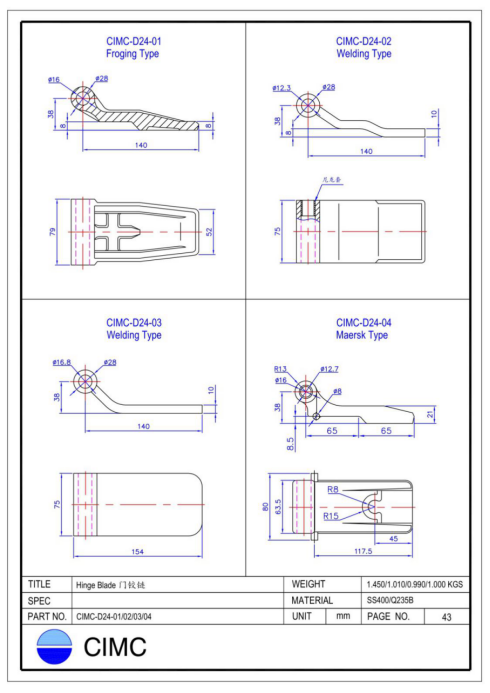

container hinge blade structure diagram


It is used to connect the door panel and the rear corner post on the back door of the shipping container.


The size of the hinge blade plate is 79*140*38 (L*W*H), and the size of the small lifting lug is 34*51*8 (L*W*H). 1 hinge blade plate + 1 pin + 2 small lifting lugs are standard on each hinge blade. It can also be configured as 1 hinge blade plate + 1 U-shaped seat + a pin, the cost of adding U-shaped seat is higher than that of adding lifting lugs.Each container comes standard with 8 sets of hinge blades, and each door is equipped with 4 sets.

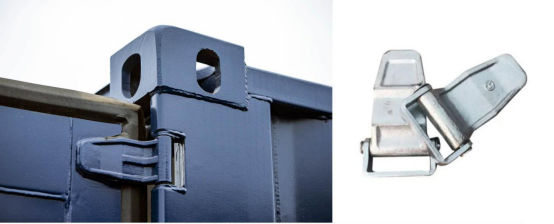

container hinge blade


CIMC Intermodal Equilink Co., Ltd has been focusing on every detail of container parts for 20+ years, and is committed to improving the quality and life of each container parts, so that your container can be used safely and securely. It is the unanimous choice of more than 1,000 partners.  The main container parts are: container corner casting, container locking device, container corner post, container cross member, container gasket, hanging corners, wrapping corners, hanging blocks, corner blocks, corner piers, corner squares, container plates, top plates, side plates, end plates, door end parts, door locks, hinge blades, safety locks, rubber strips, battens, container frames, front corner posts, rear corner posts, rear corners, reinforcements, top beams, bottom beams, container floors, floor nails, battens, ventilators, footrests, etc.; lashing equipment: intermediate locks , semi-automatic intermediate lock, bridge code / bridge lock, 260mm, 380mm, trailer twist lock, dovetail bottom lock, 45 degree dovetail bottom lock, 45 degree dovetail base, 55 degree dovetail bottom lock, 55 degree dovetail base, single cone, double cone , D-ring, base, binding tape; car lock products: 6-point lock, car hinge blade, air hook / door resistance.


The products are weather resistant to various complex environments, with high hardness, corrosion resistance, and more safety and reliability, because we strictly follow the quality system from the purchase of raw materials / product production to delivery, and the products have passed ISO9001 system certification / obtained American Bureau of Shipping ABS certification. , Strict quality inspection, the pass rate is much higher than the industry standard.


CIMC Intermodal Equilink Co., Ltd. (“CIMC Equilink”) with the staunch support from CIMC Group on resources, is focusing on providing container spare parts, new and used containers, vehicles, vehicles parts and other logistic tools.Over the years, it has established long term business relationship with many clients and suppliers and has gained high reputation in the industry. Please tell us your needs and questions by email(info.equilink@cimc.com) or submit an quick quote, we are very honored to serve you.
