Semi-trailer is the most common type of transport vehicle, with strong carrying capacity and large loading capacity, almost all materials can be transported by semi-trailer, so it is very popular among drivers and friends. The following is to popularize the important part of the wheel - steel rim for the majority of card fans. Steel trailer rims (also called wheels) are an important part of semi-trailers. "rims" and "tires" are two completely different trailer parts.

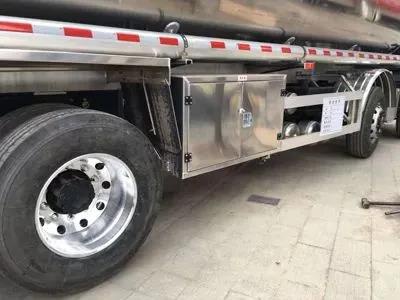

Semi-trailer rims 1

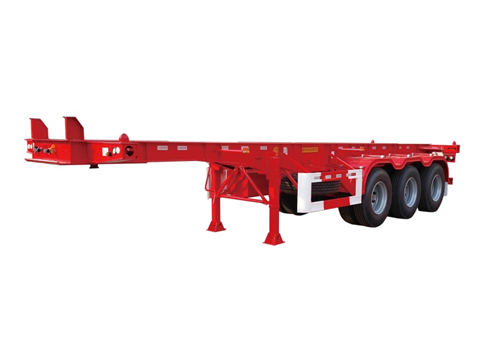

CIMC  20′30′ Straight Back Container Transport Semi-trailer

How to maintain the trailer rim？

1. When the temperature of the rim is high, it should be allowed to cool naturally before cleaning, and must not be cleaned with cold water. Otherwise, the aluminum alloy rim will be damaged, and even the brake disc will be deformed and the braking effect will be affected. In addition, cleaning the rim with detergent at high temperature will cause chemical reaction on the surface of the rim, tarnish and affect the appearance.

2. When the trailer rim is stained with hard-to-remove asphalt, if the general cleaning agent does not help, try to remove it with a brush, but do not use a hard brush, especially an iron brush, so as not to damage the surface of the rim.

3. To clean the hub, you can use paint thinner to wipe around the scar to remove the dirt. The deepest scratches are difficult to remove, so use a toothpick to clean it thoroughly. When cleaning, in order to prevent accidental painting of unrelated parts, it is best to carefully stick tape around the scar. When there are stains on the surface of the wheel hub that are difficult to remove, professional cleaning agents should be used. This cleaning agent can often gently and effectively remove the stains and reduce damage to the aluminum alloy surface. There is a metal protective film on the hub itself, so special care should be taken not to use paint brighteners or other abrasive materials when cleaning.

4. After finishing the brush tip, apply decorative paint to the damaged parts of the wheel hub. After the paint dries, paint it to protrude a little, which is convenient for the owner to observe.

5. After the finishing paint is completely dry, apply it with water-resistant paper dipped in soapy water to make the surface smooth. Then use the mixture to rub out the shine, and finally apply the wax.

6. If you find that there are deep scars on the hub, and you must observe whether the metal surface is exposed, if you can't see the metal surface, it will not rust, you can concentrate on painting the finishing paint. Dab it on with the tip of the pen and wait for the paint to dry completely. If you find exposed metal, it is best to replace it.

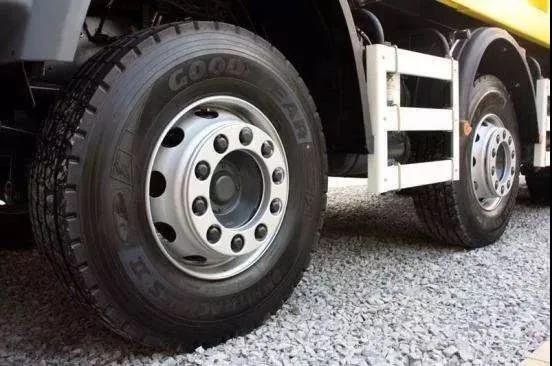

Semi-trailer rims 2

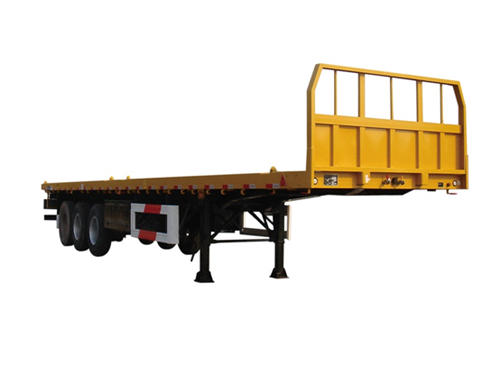

Flatbed semi-trailer

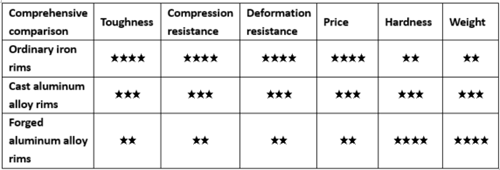

The advantages of aluminum alloy steel ring

1. Energy saving and consumption reduction, good heat dissipation. The use of aluminum alloy steel rings can reduce the weight of the whole vehicle and reduce the rotational inertia of the wheels, which improves the acceleration performance of the vehicle and reduces the demand for braking energy, thereby reducing fuel consumption.

2. High security. For high-speed vehicles, it is not uncommon to see high-temperature tire bursts and reduced braking efficiency due to tire friction and braking. The thermal conductivity of aluminum alloys is three times that of steel and iron, and it is easy to dissipate the heat generated by tires and chassis into the air. Even in the case of long-distance high-speed driving or continuous braking on downhill roads, the vehicle can maintain the proper temperature and reduce the tire blowout rate.

3. High carrying capacity. The load-carrying energy of the aluminum alloy steel ring is 5 times that of the ordinary iron ring. The forged wheel was only deformed by 5 cm after bearing 71,200 kg. The iron ring has only been deformed by 5 cm after bearing 13,600 kg. In other words, the strength of the aluminum alloy trailer rim is 5 times that of the iron steel ring.

4. Beautiful appearance. Aluminum alloy has better fluidity and tension than steel rims rims in high temperature liquid state, and the later polishing and electroplating process enables it to produce a more beautiful and changeable appearance; surface anti-corrosion treatment and electrostatic powder coating also make it durable like New.

In the next issue, we will focus on the products of trailer landing gear, please pay attention.
